    Framex-HS 170

    Lift-and-Slide Warm PVC System

    The Framex HS 170 lift-and-slide system is installed in large-format openings, with sashes that allow for efficient use of space. Floor-to-ceiling glazing provides a panoramic view.

    EXPERT ASSISTANCE

    Frame Installation Depth
    170 mm

    Filling Thickness
    40 mm

    Sealing System
    2 Seals, TPE

    Number of Sashes in the
    Structure 1, 2

    View from the outside
    View from inside
    Previous slide
    Next slide

    Technical specifications

    System Type: Lift-and-Slide
    Frame Installation Depth: 170 mm
    Sash Installation Depth: 70 mm
    Number of Tracks: 2
    Visible Profile Part (Frame + Sash): 182 mm
    Threshold Height: 65 mm
    Filling Thickness: 40 mm
    Number of Chambers in Profile (Frame/Sash): 3/5
    Sealing System: 2 Seals, TPE
    Profile Thermal Transmittance Coefficient (Uf): 1,5 W/m²K
    Profile Thermal Resistance Coefficient (Rf): 0,67 m²°C/W
    Water Tightness: 7A
    Air Permeability: 3
    Wind Load Resistance: С4/В5
    Min Sash Size: 1000х1500 mm
    Max Sash Sizes: 3000х3000 mm
    Max Width of Construction: 6000 mm
    Max Sash Weight: 400 kg
    Number of Sashes in Construction: 1, 2
    Handle Type: Rotary
    External Locking: Lock
    Compliance with Standards DSTU B V.2.7-130:2007

    Application

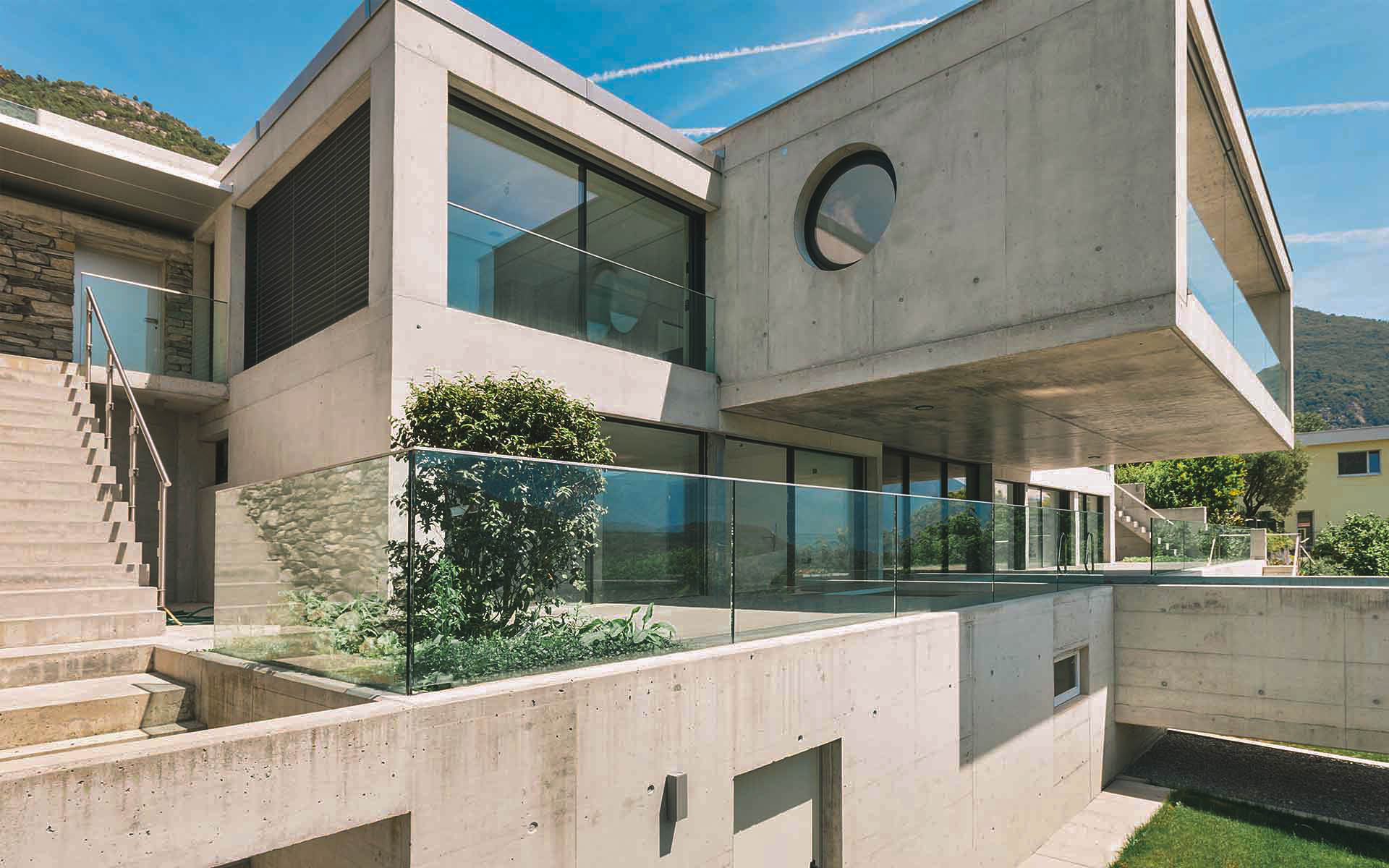

    The Framex HS 170 system is successfully used in glazing:

    • Entrance Groups
    • Access to Balcony in Urban Apartments
    • In Hotels
    • In Suburban Cottages

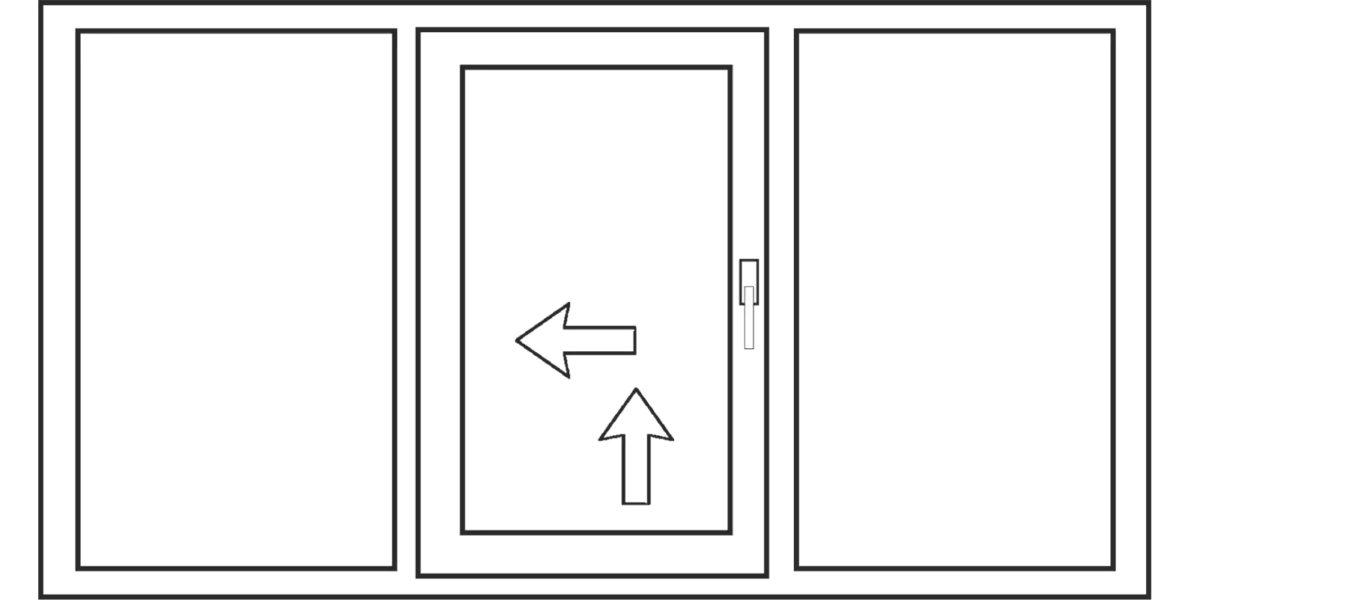

    Construction Options (Sliding Windows or Doors)

    Capabilities of Framex HS 170

    • The Framex HS 170 allows for creating a comfortable living space by combining several areas, such as joining an internal courtyard and garden, or a living room and terrace.
    • To facilitate transportation, given the large maximum sizes, the frame profile is designed so that the frame is assembled and installed on-site.
    • The manufacturing and assembly of the Framex HS 170 window-door system are simple and technological. Necessary diagrams and explanations are provided in our catalog.
    • The maximum weight of the glazing unit can reach 400 kg, allowing for the installation of glazing units with high thermal and acoustic insulation properties.
    • The reinforced profile combined with high-quality hardware ensures good operational performance of the Framex HS 170 system.
    • The portals are particularly effective in hotels and suburban cottages but are also successfully used in glazing entrance groups or access to balconies in urban apartments.
    • High-quality hardware provides reliable protection against unauthorized access and ensures good operational performance of the system.
    • The modern locking system and special sealing system, located inside and outside, allow for very easy opening, closing, and sliding of the sash.
    • The maximum sash dimensions have been increased to 3000 x 3100 mm, providing excellent panoramic views.
