Anilux PVC systems
Framex-71
PVC door system
A modern, reliable PVC door profile system in the mid-price range It has energy-saving characteristics suitable for the climate of Ukraine
Technical specifications
| Installation depth: | 71 mm |
|---|---|
| Visible profile height (frame + sash): | 143/153 mm |
| Threshold height: | 20 mm |
| Fill thickness: | 24 mm, 32 mm, 42 mm |
| number of profile chambers (frame/sash): | 6/3 |
| Sealing system: | 2 contours, TPE |
| Profile thermal transmittance coefficient (Uf): | 1,2 W/m²K |
| Profile thermal resistance coefficient (Rf): | 0,83 m²°С/W |
| Max frame size: | 3000х3000 mm |
| Min frame size: | 400х400 mm |
| width of the main chamber (frame/sash): | 31,5/41,5 mm |
| Glass beads: | Round |
| Surface | Glossy |
| Hardware: | Axis 13 mm |
| Burglary protection: | RC2 |
*The final maximum allowable dimensions of the structure, and therefore the sash, should be chosen based on the height of the building and wind loads.
Application/Advantages

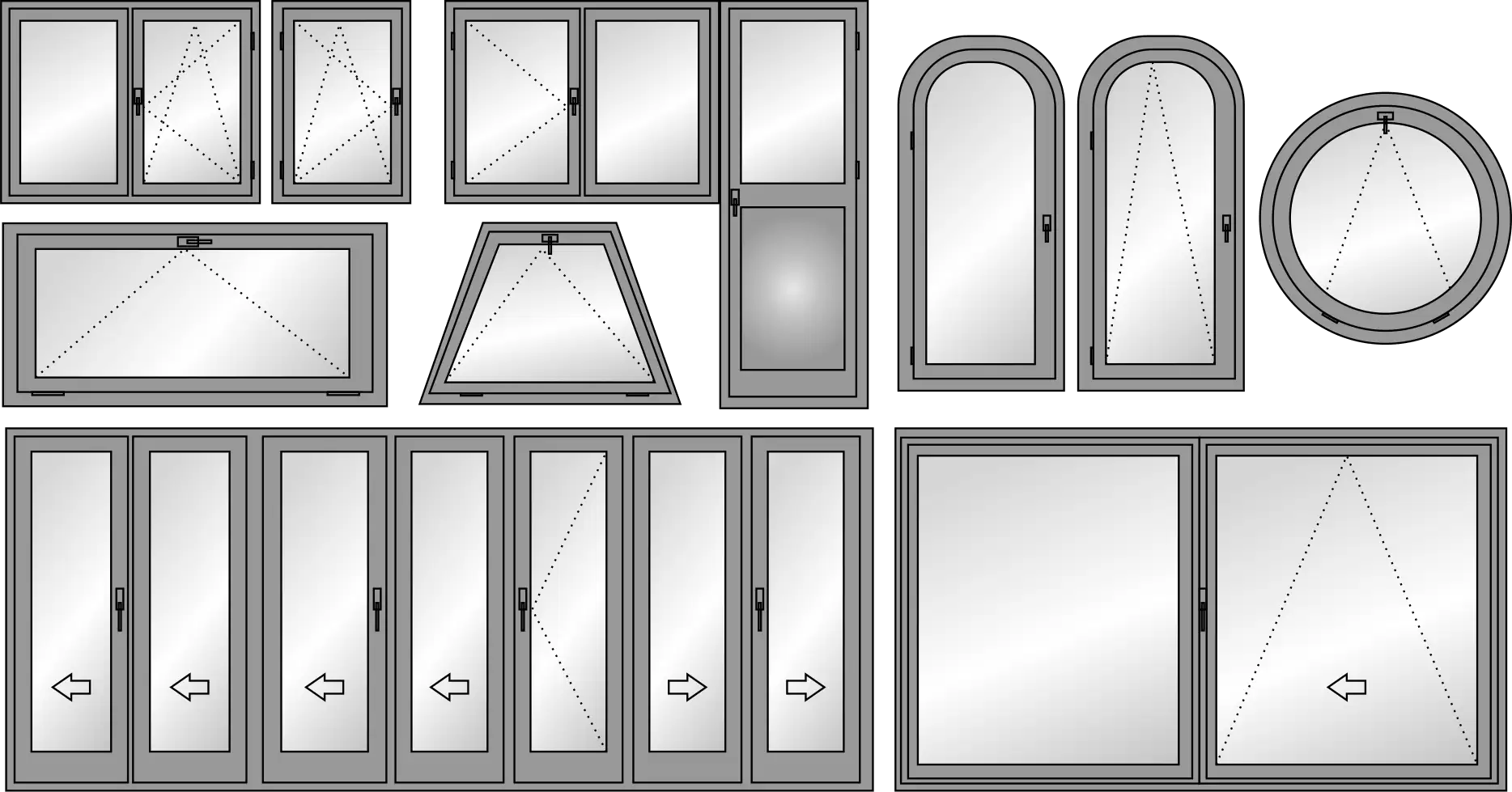

Entry doors with outward and inward opening for shops, offices, apartments, houses. Doors of classic and non-standard shapes: rectangular, arched. Tilt-and-slide structures and accordion doors. Any door design made from the six-chamber. Framex 71 profile has a modern and stylish look.
"Framex-71" slenksčio profilis
Threshold diagram
Threshold diagram with thermal bridge
