Anilux PVC systems
Framex-71
Warm tilt-and-turn PVC system
The large-scale sliding transparent system can be used both as an entrance door and for glazing balconies and regular windows, providing natural ventilation of the room through the tilting function of the sash.
Technical specifications
| System type: | Tilt-and-slide |
|---|---|
| Frame installation depth: | 71 mm |
| Sash installation depth: | 71 mm |
| Number of guides: | 1 (monorail) |
| Visible profile part (frame + sash): | 117 mm |
| Threshold height: | 126 mm |
| Filler thickness: | 24, 32, 42 mm |
| Number of profile chambers (frame/sash): | 6 |
| Sealing System: | 2 contours, TPE |
| Profile thermal transmittance coefficient (Uf): | 1,2 W/m²K |
| Profile thermal resistance coefficient (Rf): | 0,83 m²°C/W |
| Waterproofness: | 8A |
| Air permeability: | 3 |
| Resistance to wind load: | C4 |
| Min Sash size: | 670х930 mm |
| Max Sash size: | 1680х2380 mm |
| Max Width of the structure: | 6000 mm |
| Max Weight of the sash: | 130 kg |
| Number of sashes in the structure: | 1, 2 |
| Handle type: | Rotarys |
| Locking from outside: | Lock |
| Burglary protection: | RC2 | Compliance with standards: | DSTU B V.2.7-130:2007. |
* The final maximum permissible dimensions of the structure, and consequently, the sash, should be chosen based on the building height and wind loads.
Application

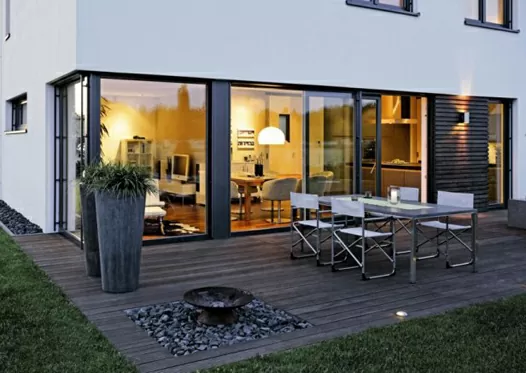

Most commonly installed as an access point to the green zone during glazing:
Options for the structure (sliding windows or doors)

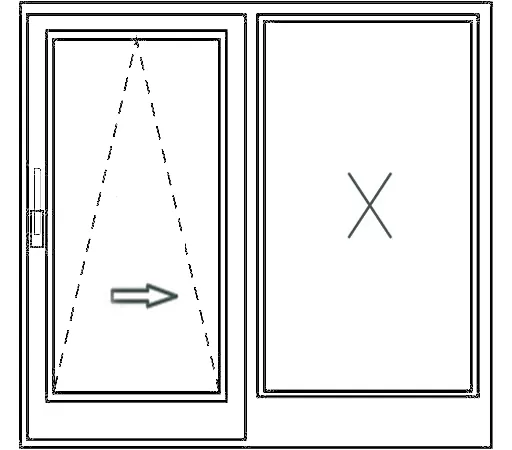

one sash "stationary" + one tilting-sliding
two "stationary" side sashes + two middle tilting-sliding ones
Exploitation

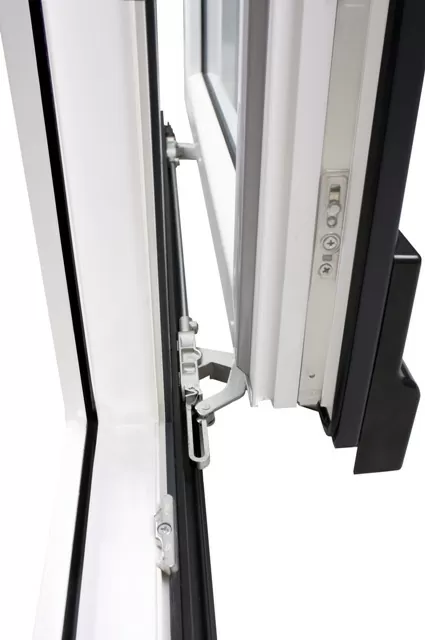

Tild-sliding doors are activated by first pulling the panel towards oneself and then shifting it sideways. The swing mode of the door leaf is initiated by turning the handle 90 degrees counterclockwise, while the parallel opening mode with subsequent shifting is activated by a 180-degree turn. Functions such as sliding, swinging, and locking are all operated by a single handle on the door leaf.
Capabilities of the tilt-sliding system Framex 71
