Anilux PVC systems

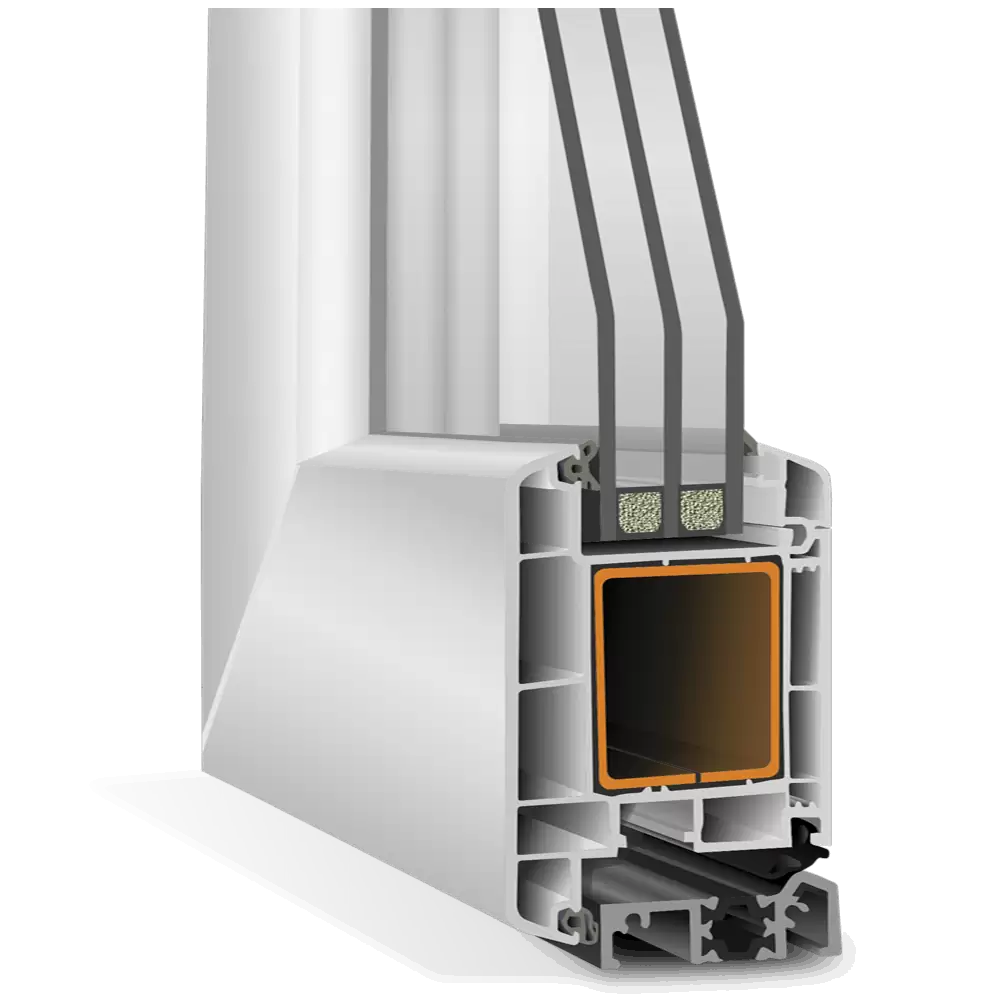

Framex-71 Deco
A modern, reliable profile system that combines the rigidity of aluminum with the heat-saving properties of PVC: aluminum caps are simply attached to the PVC structure from the outside.
Technical specifications
| Glass frames: | round |
|---|---|
| Strengthening: | double |
| Visible glass height: | 130 mm |
| Width of the main profile: | 38,1 mm |
| Fill thickness: | 24, 32, 42 mm |
| Density: | 1,44 g/cm² |
| Modulus of elasticity (E): | 2500 N/mm² |
| Vicat's softening temperature: | 82°C |
| Specific thermal conductivity: | 0,15 W/m²*°C |
| Coefficient of linear expansion: | 7.0 *10-5 1/degree |
| Thermal conductivity coefficient: | 0,87 m²*°C/W |
| Surface: | glossy |
| Rubber sealing type: | 2 contours, EPDM |
| Fittings "eurogroove" according to the 13th system: | Available |
| Number of profile cameras: | 6 |
| Installation depth: | 71 mm |
| Min. construction size: | 320x320 mm |
| Max. construction size: | 3000x3000 mm |
| Max. cabinet size: | 1200x2400 mm |
| Compliance with standards: | ДСТУ Б В.2.7.-130:2007 |
* the final maximum permissible dimension of the structure, and therefore the sash, should be selected considering the building’s height and wind loads.

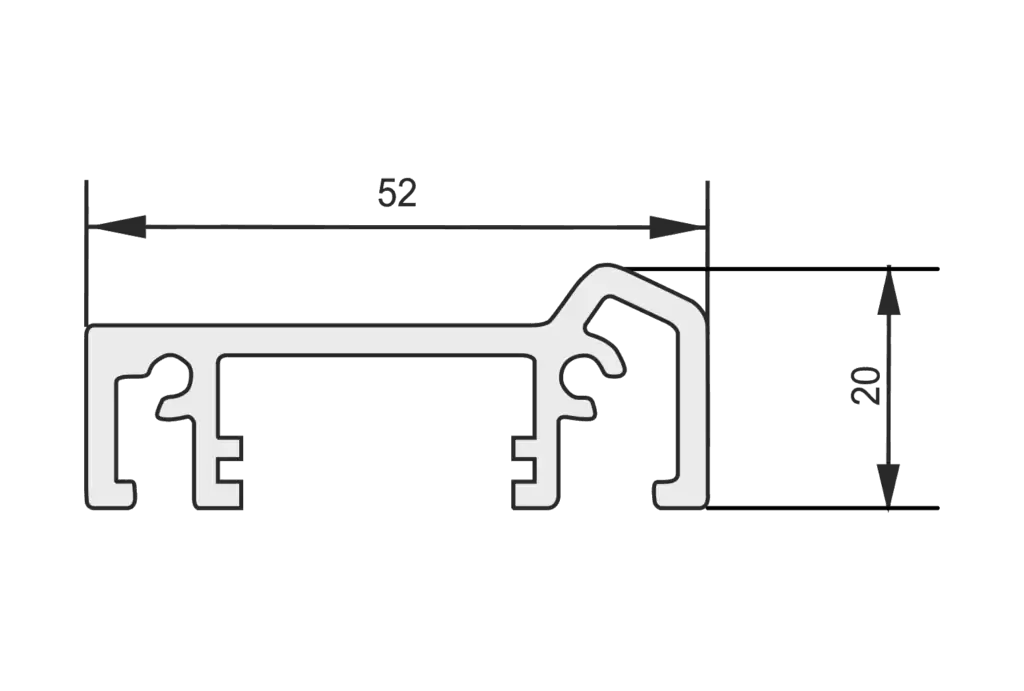

"Framex-71 Deko" threshold profile
Threshold Diagram
Threshold diagram with thermal bridge
