Anilux PVC systems

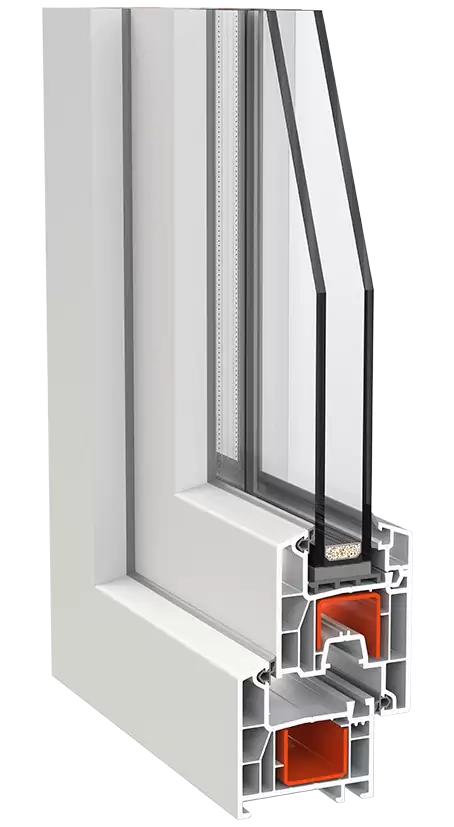

Framex-58
PVC window system

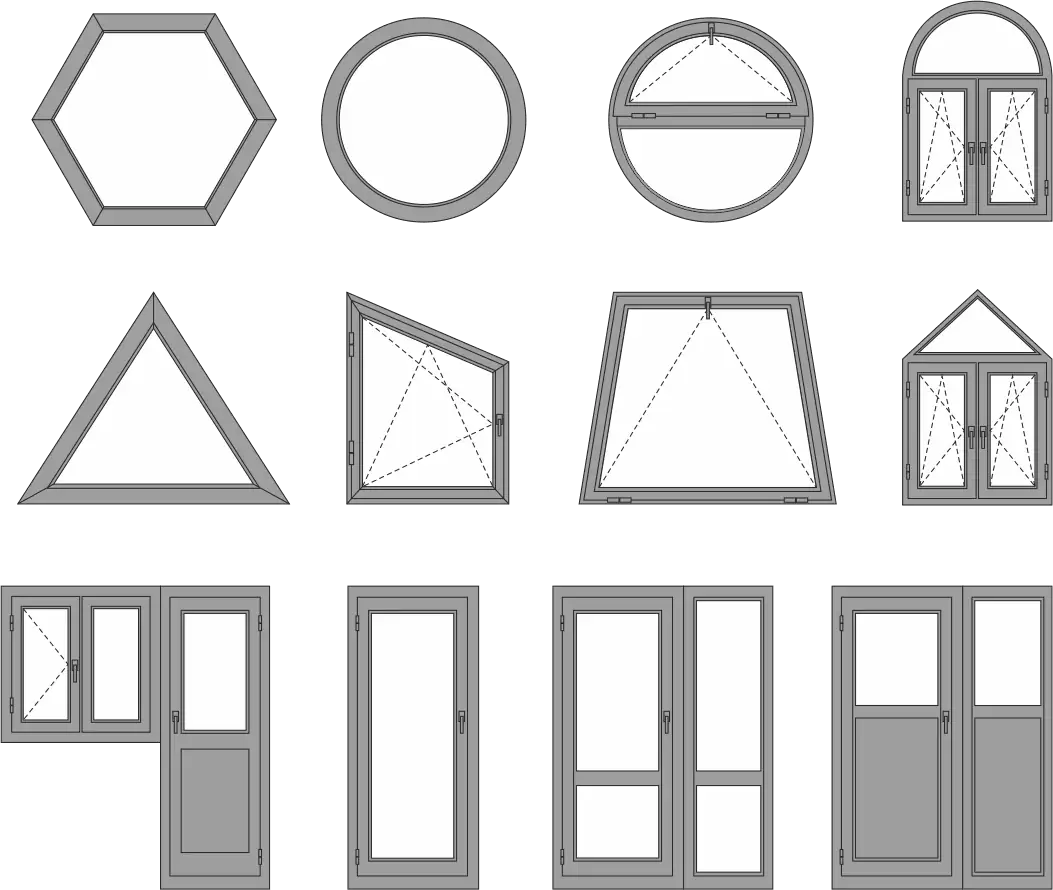

A classic PVC profile system, providing a set of essential consumer qualities at an affordable price Designed for manufacturing windows of any shape and type of opening
Technical specifications
| Installation depth: | 58 mm |
|---|---|
| Visible profile height (frame + sash): | 138/159 mm |
| Fill thickness: | 4 mm, 24 mm,32 mm |
| Number of profile chambers: | 4 |
| Sealing system: | 2 contours, TPE |
| Profile thermal transmittance coefficient (Uf): | 1,6 W/m²K |
| Profile thermal resistance coefficient (Rf): | 0,63 m²°С/W |
| Max sash size: | 1200х2400 mm |
| Max frame size: | 3000х3000 mm |
| Min frame size: | 400х400 mm |
| Width of the main chamber: | 33,3/41,5 mm |
| Surface: | Glossy |
| Hardware: | Axis 13 mm |
| Burglary protection: | RC2 |
Application
Door structures for shops, offices, apartments, houses. Doors of classic and non-standard shapes: rectangular, arched. Balcony, interior and entrance doors with outward and inward opening. Tilt-and-slide structures. Any door structure made of Framex 58 four-chamber profile looks modern and stylish.
